DIMPRKBZBK
Dimmer Knob Suits Zen Black for DIMPR DIMPRX
SKU
DIMPRKBZBK
Box Qty
1
Categories
Push Rotary Knobs
Features

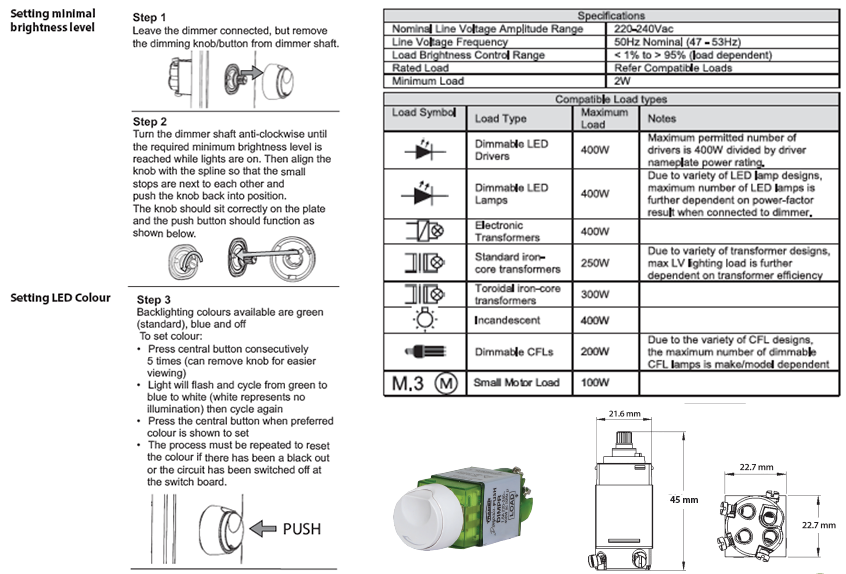

- 220-240Vac / 50Hz / 2W Min / 400W Max / <1% to > 95% (load dependent, see table below).
- Suitable for LED, incandescent and 12V dichroic lamps.
- Minimum dimming level, typically almost 0%.
- Push switch configuration with terminals similar to a standard switch for easy wiring.
- Integrated switch replaces the need for an additional control switch.
- Soft start for improved lamp & driver life.
- Thermal protection via NTC (negative temperature control).
- DIMPR is suitable for use with Australian wall plate apertures including Trader, HPM# & Clipsal*.
- Can be two way switched, but only one dimmer in the circuit
Product specs
Dimensions
23mm x 0mm x 12mm
Module
Material
Polycarbonate
Surface finish
Gloss
Push Button DIMPR Dimmer Flyer
Dimpala
Download to discover more about this product.
Data Sheets Dimpala
Download to see product technical details.
Dimpala DIMPRKBZBK
Download to see product technical details.
Scorpion Data Sheet
Scorpion
Download to see technical details for the complete Scorpion range.
Dimpala Data Sheet
Dimpala
Download to see technical details for the complete Dimpala range.
Dimmer Knob Chart
Dimpala
Downloads to see what Knobs suit Dimmer
