DIMPRKBMW
Dimmer Knob Matt White for DIMPR DIMPRX
SKU
DIMPRKBMW
Box Qty
1
Categories
Push Rotary Knobs
Features

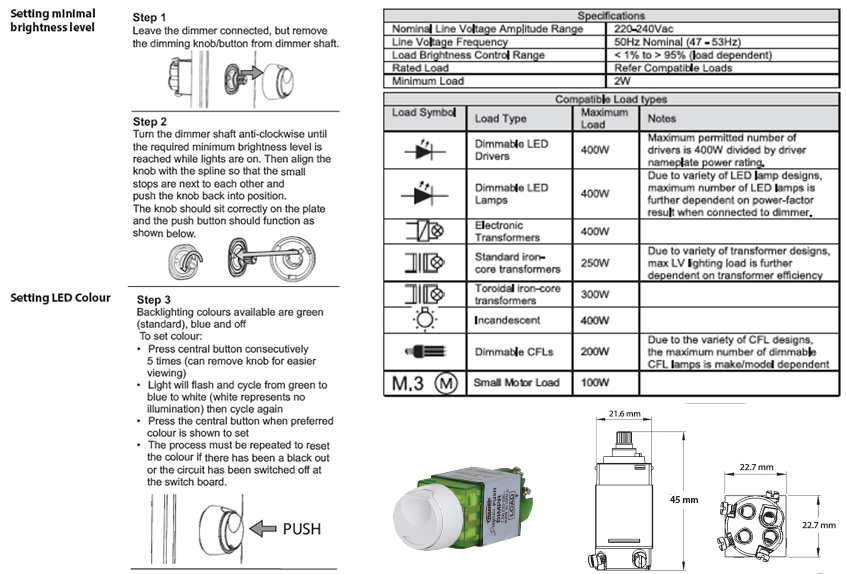

- 220-240Vac / 50Hz / 2W Min / 400W Max / <1% to > 95% (load dependent, see table below).
- Suitable for LED, incandescent and 12V dichroic lamps.
- Minimum dimming level, typically almost 0%.
- Push switch configuration with terminals similar to a standard switch for easy wiring.
- Integrated switch replaces the need for an additional control switch.
- Soft start for improved lamp & driver life.
- Thermal protection via NTC (negative temperature control).
- DIMPR is suitable for use with Australian wall plate apertures including Trader, HPM# & Clipsal*.
- Can be two way switched, but only one dimmer in the circuit
Product specs
Dimensions
23mm x 0mm x 12mm
Module
Material
Polycarbonate
Surface finish
Matte
