CLSWV5GMBK
Switch Vertical 5G 16AX 20A 250V Matt Black
SKU
CLSWV5GMBK
Box Qty
5
Categories
Switches
Features
- Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres

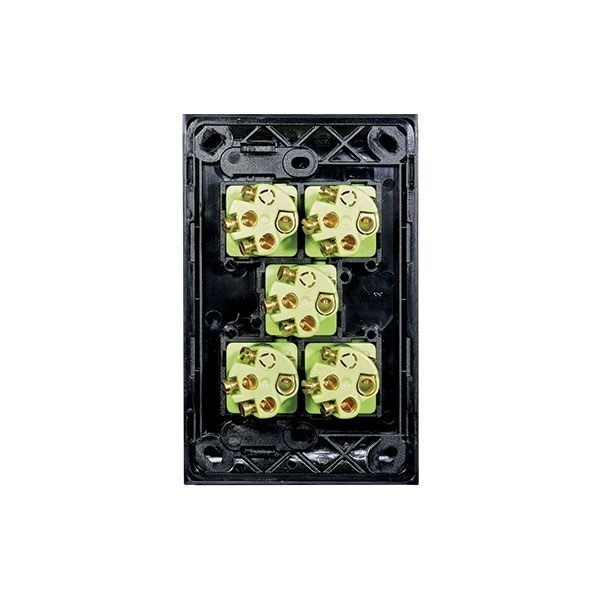

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore.
- Slotted head screws for the terminals
- Uses ‘Cat Flap’ screw covers for IP rating or mounting screws
- Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories
Product specs
Dimensions
115mm x 73mm x 27mm
Module
Material
Polycarbonate
Surface finish
Matte
