CLPP1GMW

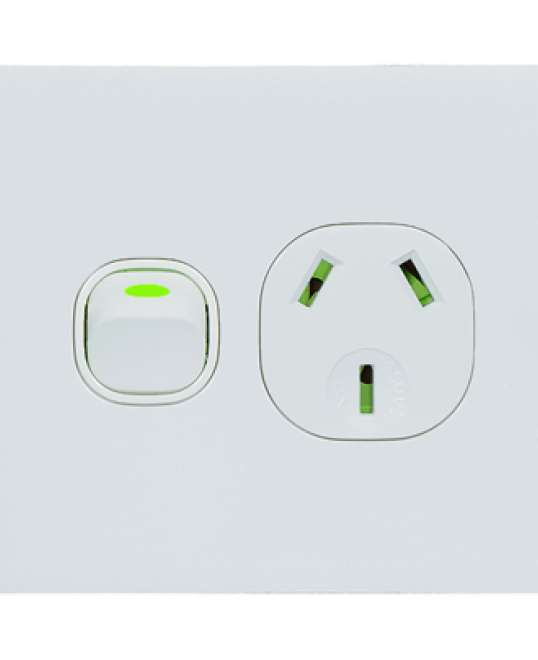

Power Point Switched 1G 10A 250V Matt White
SKU
CLPP1GMW
Box Qty
10
Categories
Power Points
Features
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

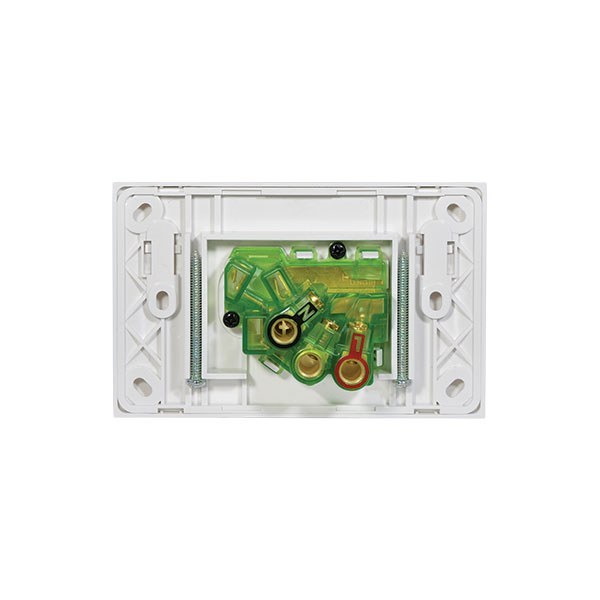

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2
- Combination head screws for the socket terminals.
- Uses ‘Cat Flap’ screw covers for IP rating mounting screws.
- Dolly indicator colour green.
- Socket outlets approved to AS/NZS3112.
Product specs
Dimensions

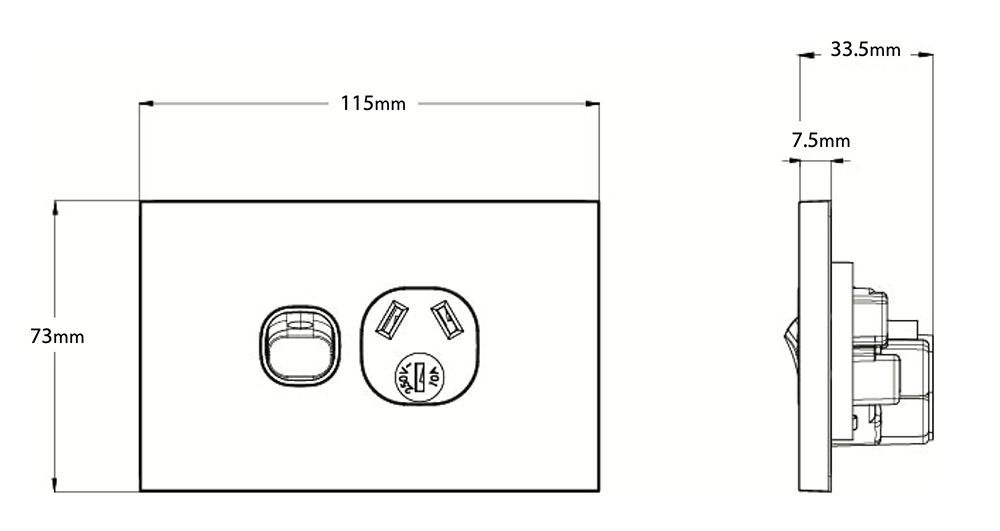

115mm x 73mm x 35mm
Material
Polycarbonate
Surface finish
Matte

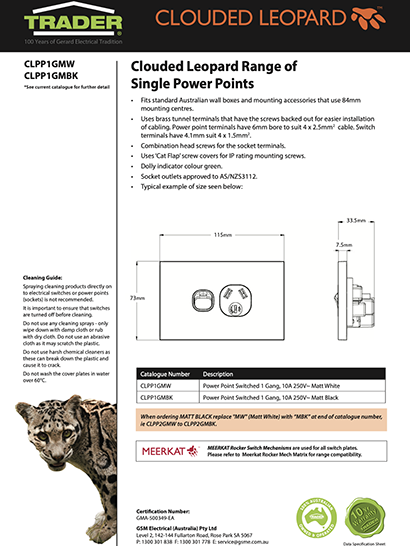

CLPP1GMW Data Sheet
Clouded Leopard Data Sheet
Clouded Leopard
Why Choose Clouded Leopard
Clouded Leopard

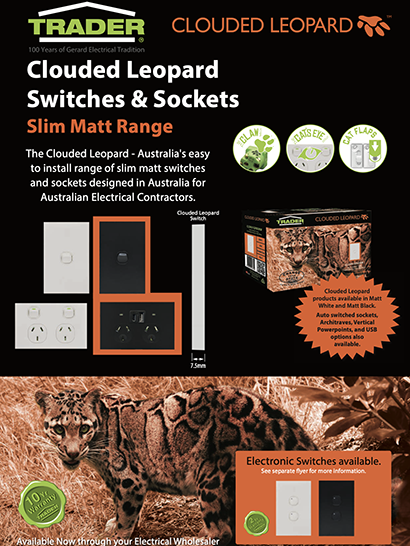

Clouded Leopard Range Flyer
Clouded Leopard
Clouded Leopard Consumer Brochure
Clouded Leopard
Data Sheets Clouded Leopard
Clouded Leopard Power Points & Switches
Clouded Leopard
