CBGSCC20L

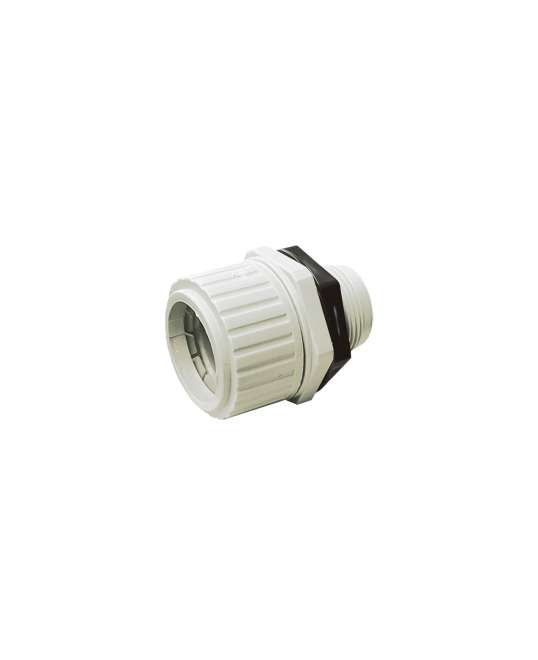

Gland Straight 20mm for Corrugated Conduit with Lock Ring PVC Grey
SKU
CBGSCC20L
Box Qty
20
Categories
Straight Glands
Features
- Colour: Electric Grey
- Material: PVC (Polyvinyl chloride)
- Thread type: M20 & M25
- Thread pitch: 1.5mm
- Device composition: Lock nut
- Installation direction: Straight
- Lower / Upper temperature range: -15°C / 60°C
- Product application: Diameter 20mm & 25mm tube
- Standards: AS/NZS61386.1:2015; IEC 61386-1: 2008 Part 1: General requirements; IEC 61386-21: 2002 Part 21: Particular requirements – Rigid conduit systems

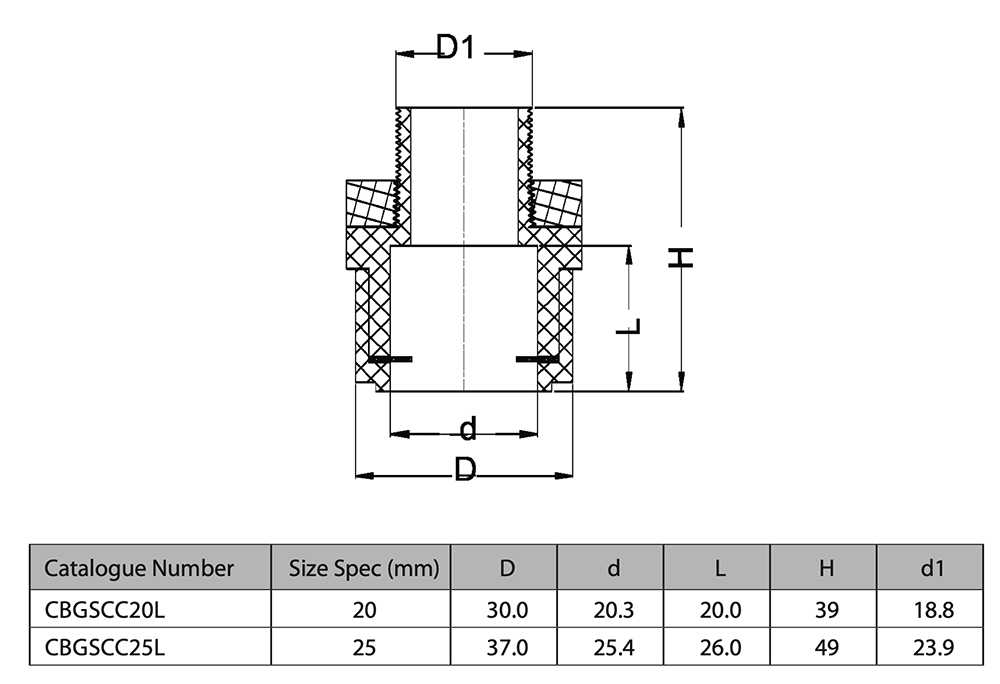

Product specs
Dimensions
40mm x 32mm x 32mm
Module
Material
PVC
Surface finish
Gloss
