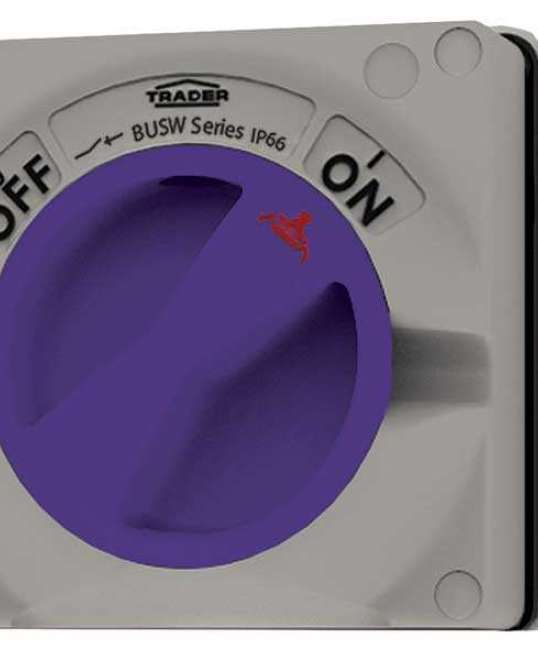

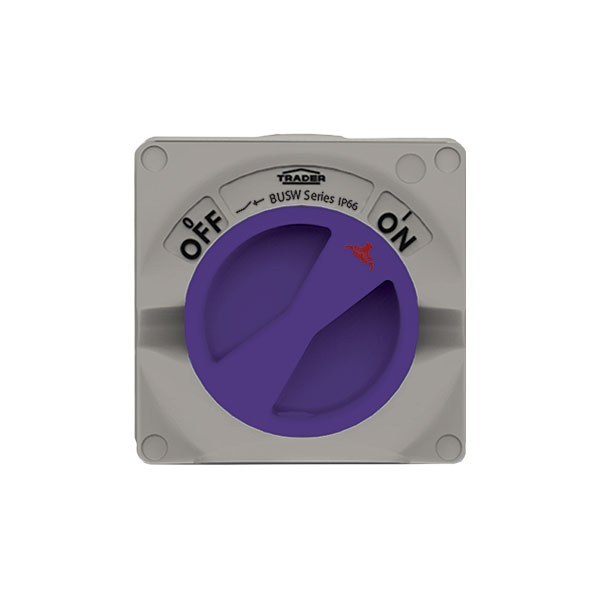

BUSW232RG

Switch Disconnector IP66 32A 500V 2 Pole Chemical Resistant Grey

SKU

BUSW232RG

Box Qty

Categories

RG Switches

Features

The Buffalo switches have recently been updated with testing for categorization for Isolation and are now marked for use as switch disconnectors.
["The 10A to 20A models have been certified in accordance with AS\/NZS3133 and 10A","20A","32A","and 63A have also been tested complied with IEC and AS 60947-3 with the 32A and 63A models being listed on a certificate of suitability."]
The same heavy duty switches are used in our Combinations are available as individual switches for isolation and control applications.
Heavy Duty terminals with diameter 7.6mm terminals suitable for 25mm2 cable.
["Switch supplied with a large","easy to use knob","suitable for use with heavy industrial gloves. Has a positive","rotary action."]
Switch Knob features two Oval Shape (11 x 9mm) lock off facilities. Suits 9.0mm padlock staple.
Conduit plugs provided with rubber gaskets to assist IP rating and to aid secure fitment.
Raised ON/OFF marking to allow visibility in dusty environments.
Laser etched product marking (no adhesive labels that fall off).
LED Drill out facility for LED indicators (not supplied).
["Approved to AS\/NZS3133 (10A - 20A)","AS 60947-3 (Over 32A).(All models tested in accordance and comply with both standards)"]
Range includes Double and Three Pole. See the table for product detail as some configurations vary.
All models have been tested and comply with AS/NZS 3133 M200 motor rating as shown in the table.
Not suitable for areas of high UV.
Chemical Resistant Grey for alkaline Applications
["In addition","the Utilization category of AC23A for motors and highly inductive loads is rated at Ie=10A for the 10A models","Ie=20A for 20A","Ie=32 for 32A Models and Ie=50A for 63A."]
Pollution Degree: 2
Recommended screw torque for corner cover screws 0.6Nm
Recommended torque for Earth/Neutral fixed terminals 2Nm
Recommended torque for Switch terminals 2.5Nm-
