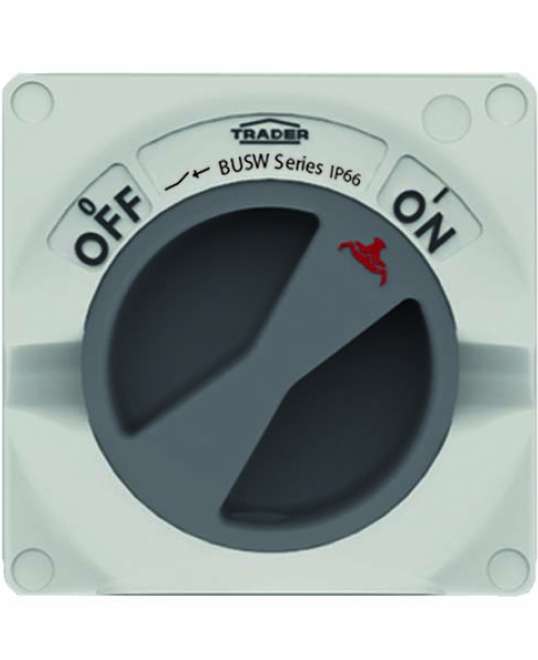

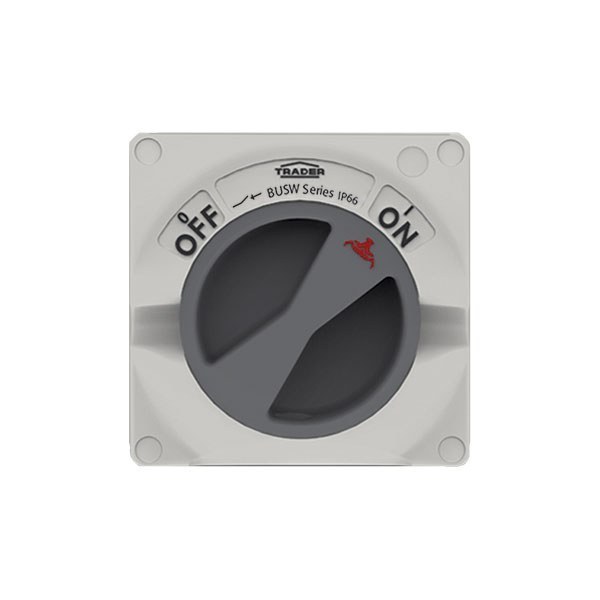

BUSW210LE
Switch Disconnector IP66 10A 500V ac 2 Pole Grey Less Enclosure
SKU
BUSW210LE
Box Qty
No box quantity found.
Categories
Switches
Features
- ["• The Buffalo switches have recently been updated with testing for categorization for Isolation and are now marked for use as switch disconnectors.\n• The 10A to 20A models have been certified in accordance with AS\/NZS3133 and 10A","20A","32A","and 63A have also been tested complied with IEC and AS 60947-3 with the 32A and 63A models being listed on a certificate of suitability.\n• The same heavy duty switches are used in our Combinations are available as individual switches for isolation and control applications.\n• Heavy Duty terminals with diameter 7.6mm terminals suitable for 25mm2 cable.\n• Switch supplied with a large","easy to use knob","suitable for use with heavy industrial gloves. Has a positive","rotary action.\n• Switch Knob features two Oval Shape (11 x 9mm) lock off facilities. Suits 9.0mm padlock staple.\n• Conduit plugs provided with rubber gaskets to assist IP rating and to aid secure fitment.\n• Raised ON\/OFF marking to allow visibility in dusty environments.\n• Laser etched product marking (no adhesive labels that fall off).\n• LED Drill out facility for LED indicators (not supplied).\n• Approved to AS\/NZS3133 (10A - 20A)","AS 60947-3 (Over 32A).(All models tested in accordance and comply with both standards)\n• BUSW463 is fitted with a deep enclosure.\n• Range includes Single*","Double","Three Pole","as well as Four Pole in amperages from 10A up to 63A. See the table for product detail as some configurations vary.\n• All models have been tested and comply with AS\/NZS 3133 M200 motor rating as shown in the table.\n• In addition","the Utilization category of AC23A for motors and highly inductive loads is rated at Ie=10A for the 10A models","Ie=20A for 20A and 32A Models and Ie=25A for 63A.\n• Pollution Degree: 2\n• Recommended screw torque for corner cover screws 0.6Nm\n• Recommended torque for Earth\/Neutral fixed terminals 2Nm\n• Recommended torque for Switch terminals 2.5Nm"]
Product specs
Amperage (A)
10
Voltage (V)
500
Poles (Pole)
2
Material
633630001
Surface Finish
633630005
