BUSO332RWLE
Socket Outlet IP66 32A 250V ac 3 Round Pin Chem Resistant White Less Enclosure
SKU
BUSO332RWLE
Box Qty
1
Categories
RW Sockets
Features

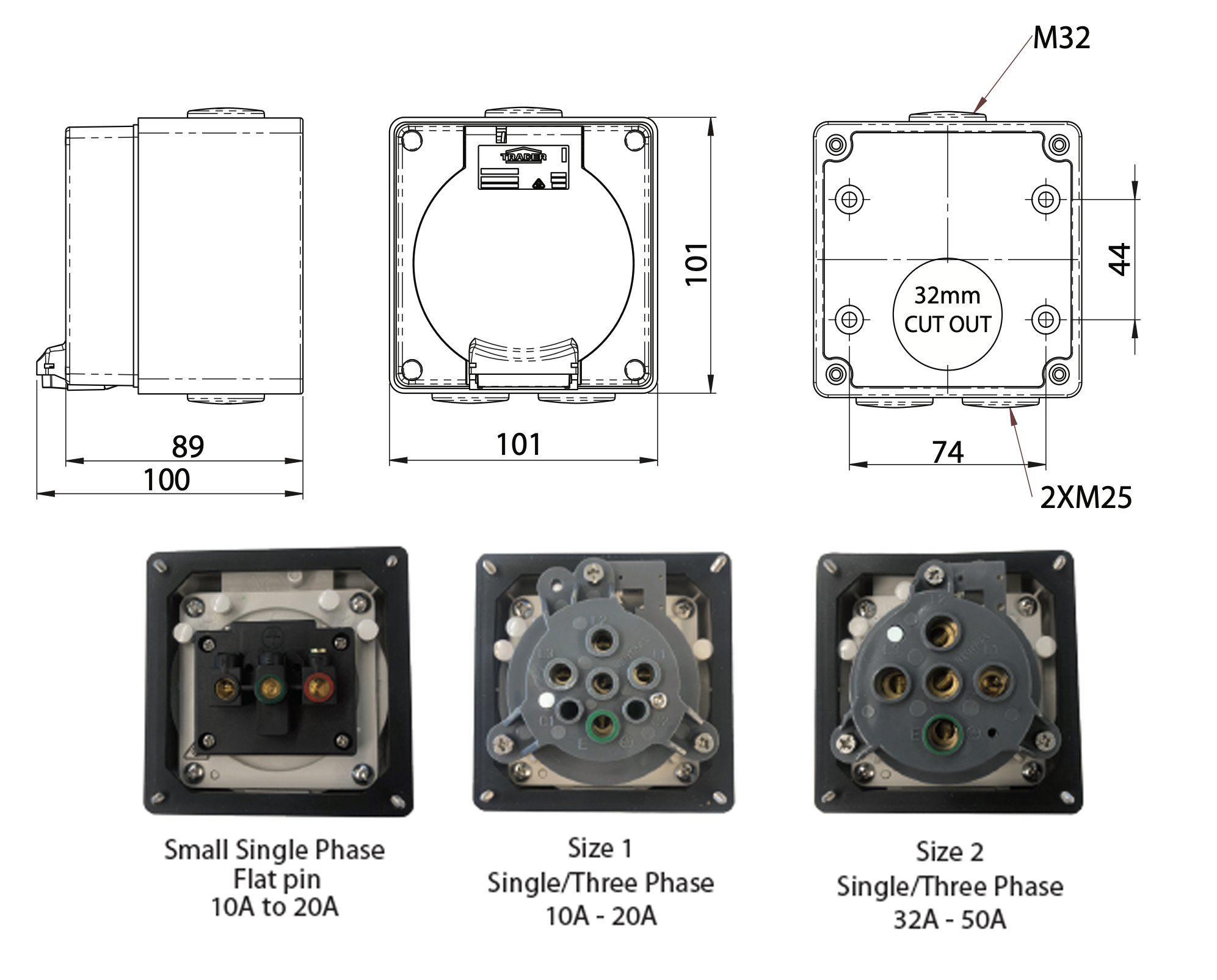

- IP66 Heavy Duty Sockets The Socket components used in Buffalo Combinations are also available as individual Socket Outlets for use in relevant applications. They are robust and easy to use, and have a one piece spring-loaded transparent flap with self-latching design to seal out dust and moisture when not in use, ensuring an IP66 rating. Flap's spring-loaded pin is centrally assembled eliminating the need to insert external cover caps. Flap opens up to 180° enabling easy insertion & removal of plugs. Threaded socket surround will accept Plug lock rings to ensure IP66 rating & secure fitment. The range includes three, four, and five pin products in amperages from 10A up to 50A. See the table for product detail. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A Chemical Resistant White for Acid Applications.
Product specs
Dimensions
96mm x 96mm x 70mm
Voltage
250
Amperage
32
Poles
3
Material
Polycarbonate
Surface finish
Gloss
