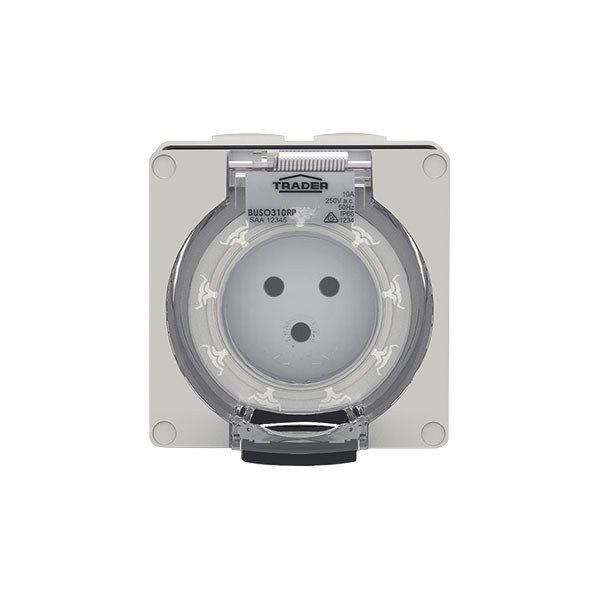

BUSO310RP
Socket Outlet IP66 10A 250V ac 3 Round Pin Grey
SKU
BUSO310RP
Box Qty
1
Categories
Sockets
Features
- The Socket components used in Buffalo Combinations are also available as individual Socket Outlets for use in relevant applications. They are robust and easy to use, and have a one piece spring-loaded transparent flap with self-latching design to seal out dust and moisture when not in use, ensuring an IP66 rating. Flap's spring-loaded pin is centrally assembled eliminating the need to insert external cover caps. Flap opens up to 180° enabling easy insertion & removal of plugs. Threaded socket surround will accept Plug lock rings to ensure IP66 rating & secure fitment. The range includes three, four, and five pin products in amperages from 10A up to 50A. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A-
Product specs
Dimensions
110mm x 101mm x 102mm
Module
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Buffalo
Download to see product technical details.
Why Choose Buffalo
Buffalo
Click to discover why Buffalo is the ideal choice for your needs!
Buffalo BUSO310 RP
Download to see product technical details.
Buffalo Range Flyer
Buffalo
Download to explore the full Buffalo range.
Buffalo Data Sheet
Buffalo
Download to see technical details for the complete Buffalo range.
