BUSB13

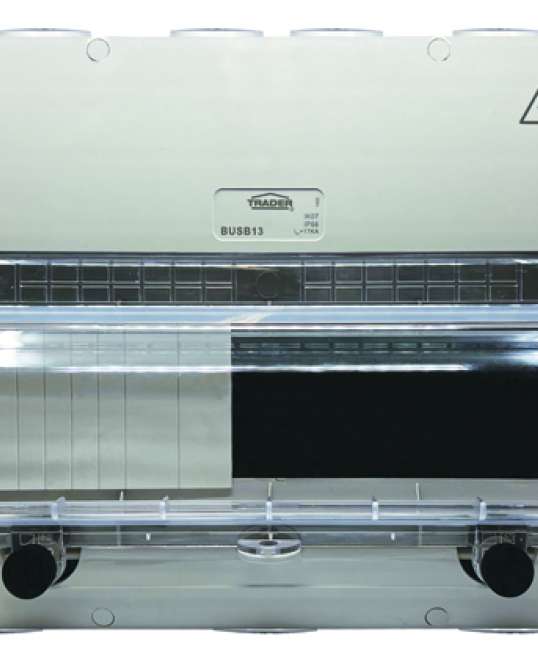

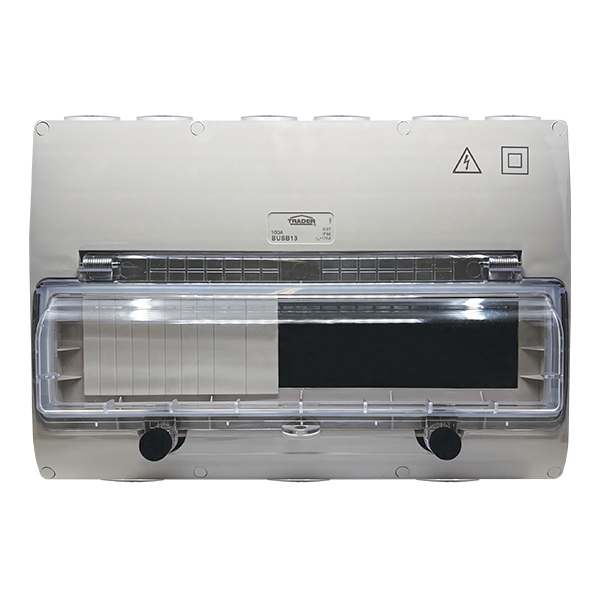

Switchboard 13 Module IP66 100A Grey

SKU

BUSB13

Box Qty

1

Categories

Switchboards

Features

  • 13 module Enclosure with removable DIN rail assembly.
  • Horizontal mount.
  • Rated to 100A.
  • Earth and neutral link bars provided.
  • Includes 6 Module PVC back box with additional top & bottom conduit entries.
  • DIN & Link Bar Cradle Assembly can be removed to aid installation of DIN equipment & cabling.
  • Back Box has 8 x Ø 25mm & 5 x Ø 32mm conduit entries and 2 x 40mm, 2 x 32mm & 2 x 25mm Ø rear cut-outs.
  • Polycarbonate Cover for High Impact Strength.
  • UV Resistant material.
  • Good level of Chemical Resistance.
  • Pole fillers provided to fill unused DIN space.
  • Ambient Temperature capability from -25C to +75C.
  • Grey colour.
  • Installer tip: cover all mounting or cover screws with supplied screw caps & sealant, likewise all conduit entries should be tightened & sealed with sealant.
  • Fix cover screws to maximum torque levels of 0.53Nm
  • IK07 impact resistant
  • Compliant to AS/NZS 61439.3-

Product specs

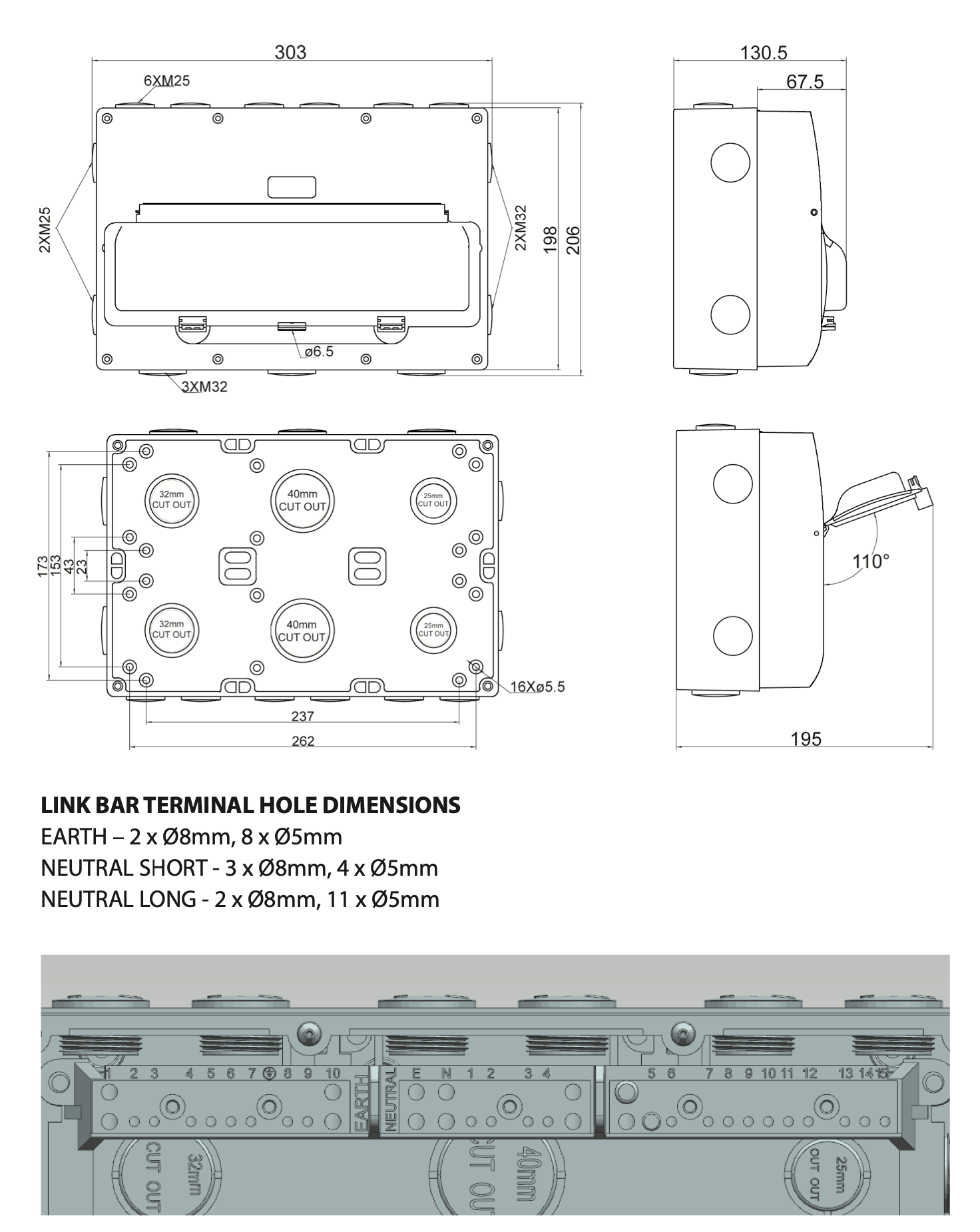

BUSB13 Spec

Dimensions

310mm x 210mm x 135mm

Module

13

Material

Polycarbonate

Surface finish

Gloss

BUSB13 Resources

Buffalo BUSB13

Download to see product technical details.
DOWNLOAD
