BUEXSO310ROW
Socket Extension Cord IP66 10A 250V ac 3 Flat Pin Chemical Resistant Orange and White
SKU
BUEXSO310ROW
Box Qty
1
Categories
ROW Extension Sockets
Features
- IP66 Extension Sockets
- Small Single Phase 10A to 20A (250V~).
- Size 1 Single & Three Phase 10A to 20A (250V~ to 500V~).
- Size 2 Single & Three Phase 32A to 50A (250V~ to 500V~).
- 3 Flat Pin, 3 Round Pin, 4 Round Pin, 5 Round Pin.
- 10A, 15A, 20A, 32A, 40A & 50A current ratings.
- Straight body format providing a more traditional design.
- Ribbed Lock ring on Small Single Phase versions for gripping with gloved hands.
- Rear cord entry and cable gland ensuring IP66 rating.
- Internal cable clamp to support electrical connections.
- Chemical Resistant Orange and White for Acid Applications.
- Size 1 Single and Three Phase suits Smaller to Medium single or three phase loads.
- Size 2 Single and Three Phase suits Medium to Large single or three phase loads.
- Size 1 and Size 2 products have hinged Spring Loaded cover flaps for added safety and to keep dust & water out.
- Small Extension Sockets 10A and 20A accept cables from ø 6-12mm Size 1 Extension Sockets 10A and 20A accept cables from ø 12-16mm Size 2 Extension Sockets 32A, 40A and 50A accept cables from ø 11-16mm

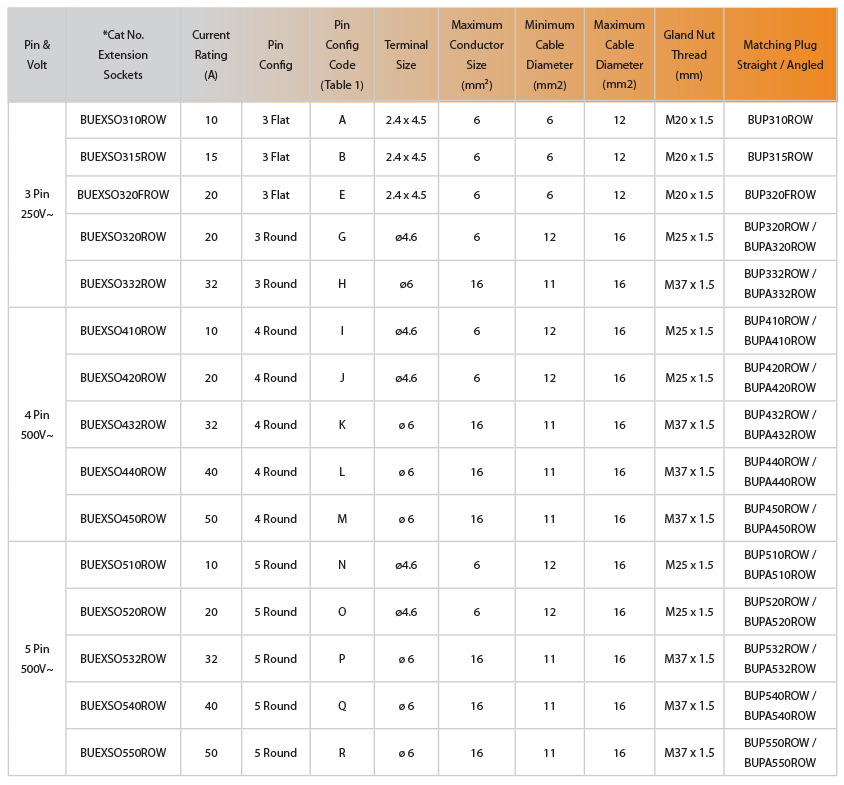

Product specs
Dimensions
110mm x 66mm x 66mm
Voltage
250
Amperage
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
