BUC410RO

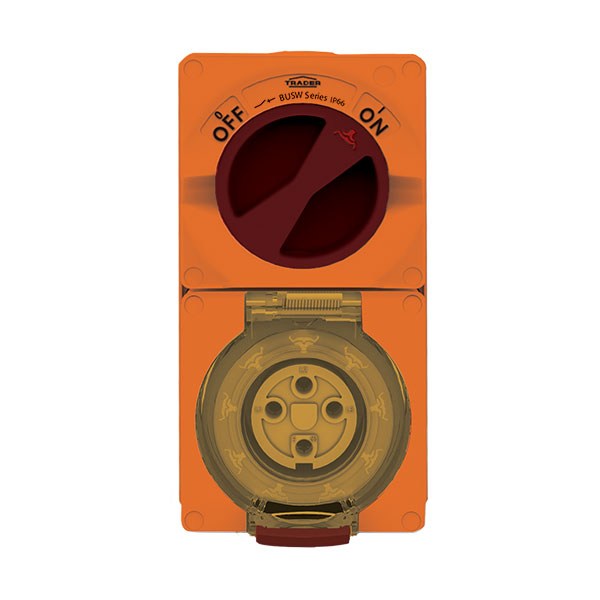

Combination Switched Socket IP66 10A 500V 4 Pin Chemical Resistant Orange
SKU
BUC410RO
Box Qty
No box quantity found.
Categories
RO Combo Switches
Features
- Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs. Phase links are factory fitted between switches and sockets. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products. The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated. Switch is provided with LED fitment option (not supplied). Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out.
- Recommended screw torque for corner cover screws 0.6Nm
- Recommended torque for Earth/Neutral fixed terminals 2Nm
- Recommended torque for Switch terminals 2.5Nm Part bag contains twin screwed connector. Chemical Resistant Orange for Acid Applications.

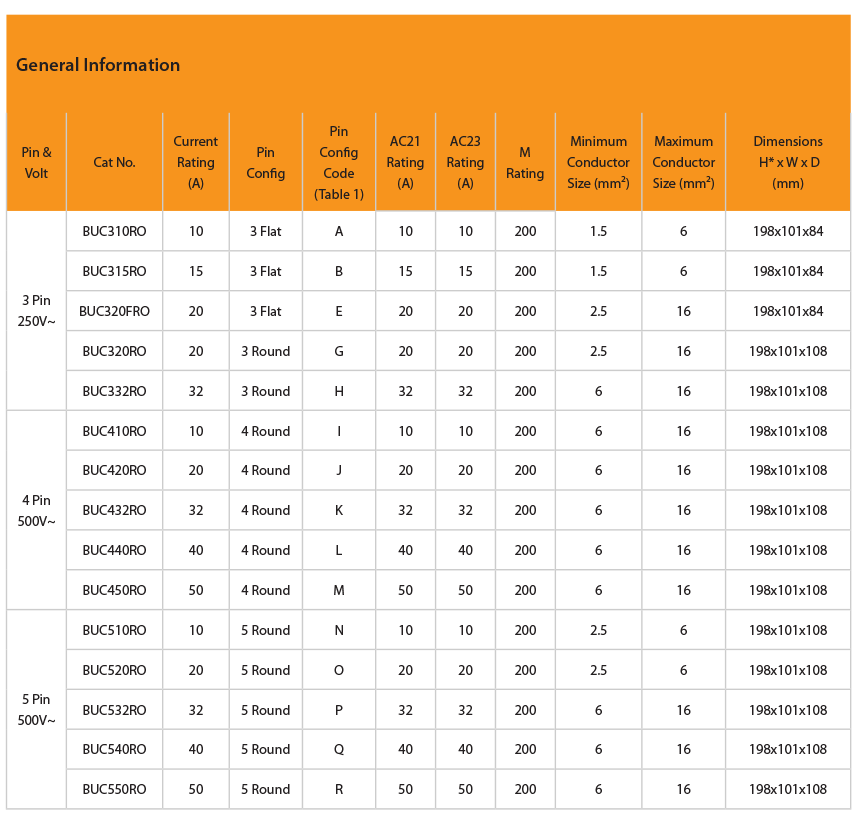

Buffalo Chemical Resistant - Data Sheet
Buffalo
Download to see technical details for the complete Chemical Resistant range.
TRADER WIRING INSTRUCTION BUC
Download to see product technical details.
Buffalo Chemical Resistant Range Brochure
Buffalo
Download to explore the full Chemical Resistant range.
Buffalo Chemical Resistant BUC410 RO
Download to see product technical details.
Buffalo Range Brochure
Buffalo
Download to explore the full Buffalo range in depth.
Buffalo Data Sheet
Buffalo
Download to see technical details for the complete Buffalo range.
