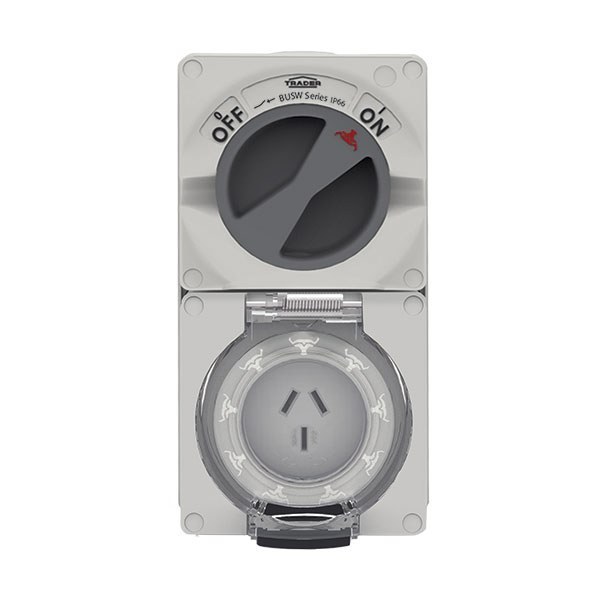

BUC320F
Combination Switched Socket Outlet IP66 20A 250V ac 3 Flat Pin Grey
SKU
BUC320F
Box Qty
1
Categories
Combo Switches
Features
- Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs. Phase links are factory fitted between switches and sockets. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products. The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated. Switch is provided with LED fitment option (not supplied). Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out. Part bag contains twin screwed connector.-
Product specs
Dimensions
206mm x 101mm x 85mm
Module
Material
Polycarbonate
Surface finish
Gloss
Buffalo BUC320 F
Download to see product technical details.
