BUC315RO

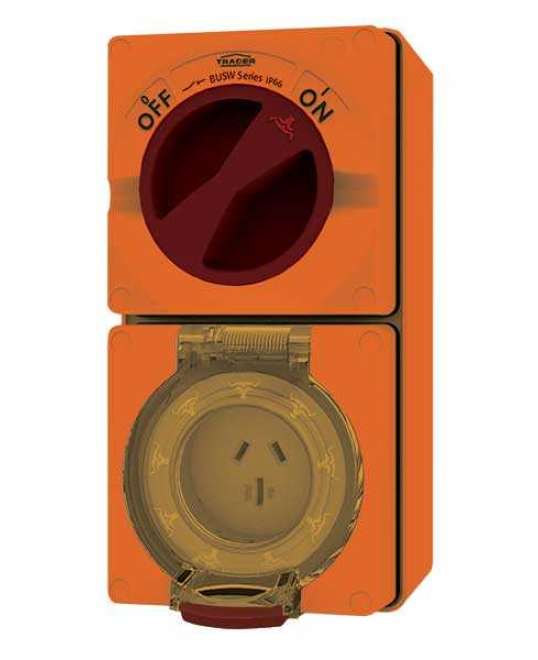

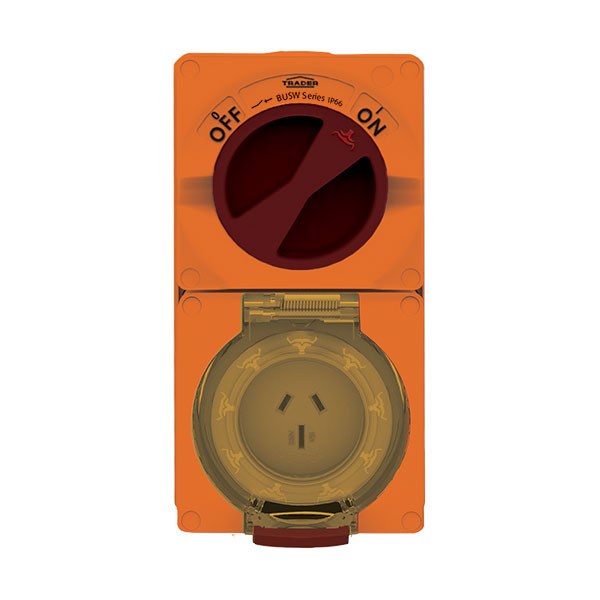

Combination Switched Socket IP66 15A 250V 3 Flat Pin Chemical Resistant Orange
SKU
BUC315RO
Box Qty
No box quantity found.
Categories
RO Combo Switches
Features
- Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs. Phase links are factory fitted between switches and sockets. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products. The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated. Switch is provided with LED fitment option (not supplied). Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out.
- Recommended screw torque for corner cover screws 0.6Nm
- Recommended torque for Earth/Neutral fixed terminals 2Nm
- Recommended torque for Switch terminals 2.5Nm Part bag contains twin screwed connector. Chemical Resistant Orange for Acid Applications.
BUC315RO Data Sheet
[Priority: 10]
Buffalo Data Sheet
[Priority: 1]Buffalo
Buffalo Chemical Resistant - Data Sheet
[Priority: 2]Buffalo
Buffalo Range Brochure
[Priority: 5]Buffalo
Buffalo Chemical Resistant Range Brochure
[Priority: 6]Buffalo
TRADER WIRING INSTRUCTION BUC
[Priority: 10]
Industrial Switchgear | Chemical Resistance
[Priority: 74]Buffalo Chemical Grey
