BESMOKEY10WM

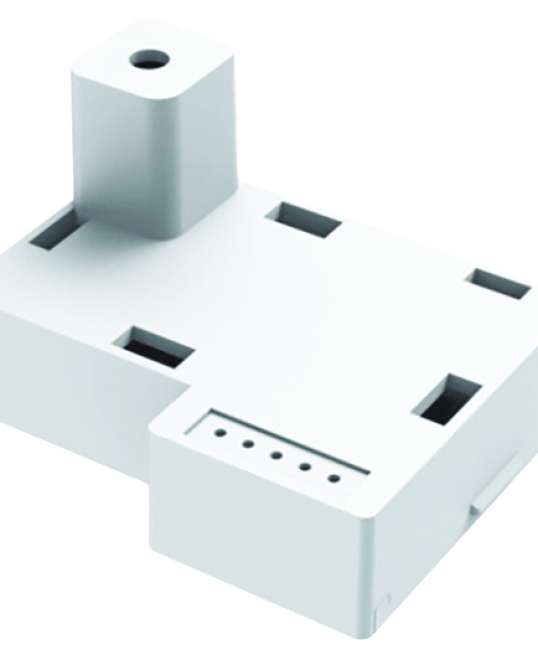

Smoke Alarm Module for Wireless Interconnecting BESMOKEY10 433MHz 13dB 40 Devices Connectable
SKU
BESMOKEY10WM
Box Qty
1
Categories
Smoke Alarm
Features
- ["• Application: Suitable for TRADER BESMOKEY10 220-240V a.c. smoke alarm .\n• Wireless Distance: >60m (clear line of sight).\n• Frequency: 433.42MHz.\n• Interconnection capacity: Maximum 40 devices .\n• Size: 45 x 35 x 26mm.\n• Temp range: 0°C - 45°C .\n• Max Humidity: 5-95%RH.\n• Wireless module complies with AS\/NZS4268.\n• Alarm Signal Pattern when installed in BESMOKEY10: ISO 8201 and AS 3786:2014 compliant Introducing Wireless Alarm Option into the network with the BESMOKEY1 0WM module.\n• This module can be installed into the BESMOKEY10 by first disconnecting the power and opening one of the mains powered alarms","do this before removing the yellow tag for the battery","replace\nthe blank housing with the BESMOKEY10WM wireless module then remove battery tag to\nconnect power.\n• The BESMOKEY10WM communicates at 433.42MHz and can operate at range greater than 60m.\n• With the power off select one mains wired alarm to be the master for the wireless link and install\nthe BESMOKEY10WM.\n• The BESMOKEY10 with BESMOKEY10WM can also pair to BESMOKEY10BW 10 Year Lithium\nWireless Smoke Alarm.\nCaution: Only install one pluggable BESMOKEY10WM module into a group of mains-wired\ninterconnected alarms. If there is more than one installed with wired connections","it will\nnot work. Follow the instructions provided to pair the wireless alarms in the network."]
Product specs
Voltage (V)
240
Material
633630000
Surface Finish
633630006
